Lift and slide OVER 92 / Wooden window systems

Back to wooden window systems

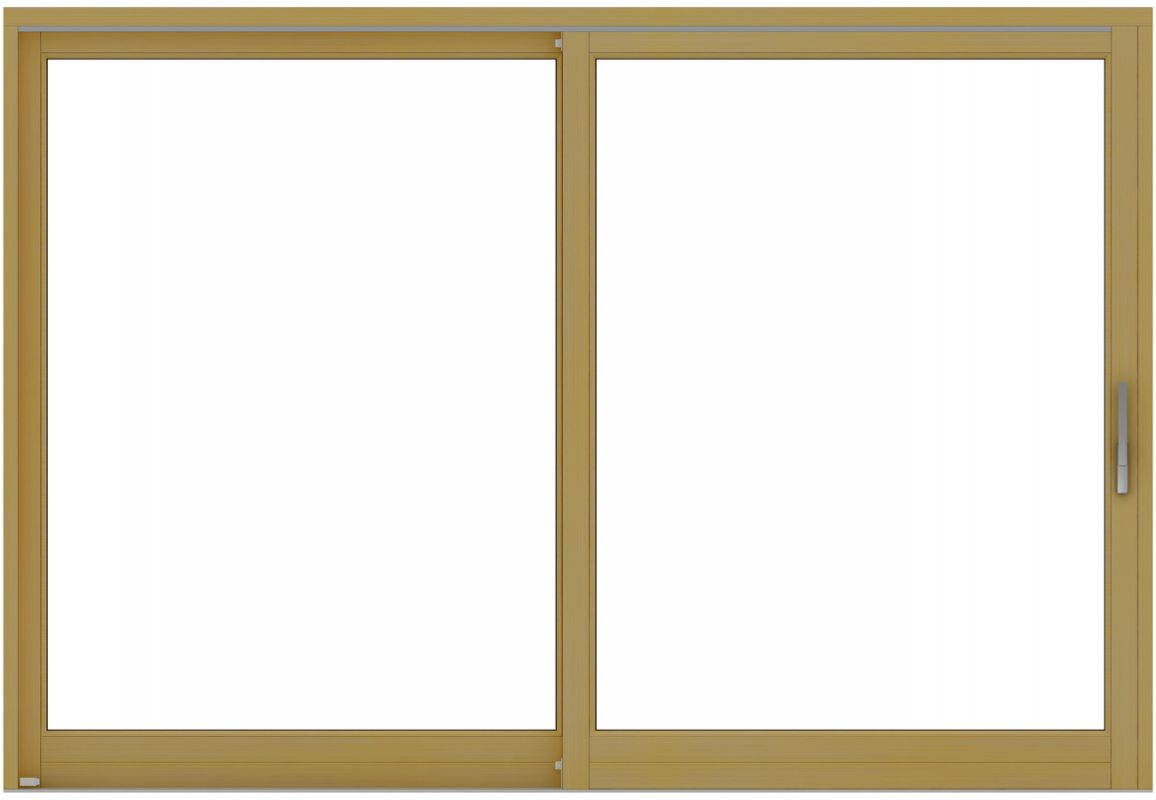

Lift and slide over 92

Lift and slide laminated wooden windows profile consisting of 4 or more wooden boards, glued with class D4 glue according to EN 204. Glass stopper available in different shapes.

WOODEN PROTECTION

Wood Surface treatment with products based on acrylic resins in aqueous emulsion; the applied cycle varies from three to six coats depending on the finish and the required durability.

DIMENSIONS

Fixed lamellar window frame nominal section 212 x 56 mm
Fix and mobile sash nominal section 100 x 92 mm
Plinth nominal section 110 x 92 mm.

HARDWARE

Hardware Maico Rail-system type lift and slide complete with trolleys, guide and threshold.
Closure realized by means of joints of the window frame hooked on the rod/lock placed on the sliding sash.
Upper closing profile, on sliding sash, complete with gasket.
Central knot with PVC or wood stopper complete with gaskets.

GASKET AND SEAL

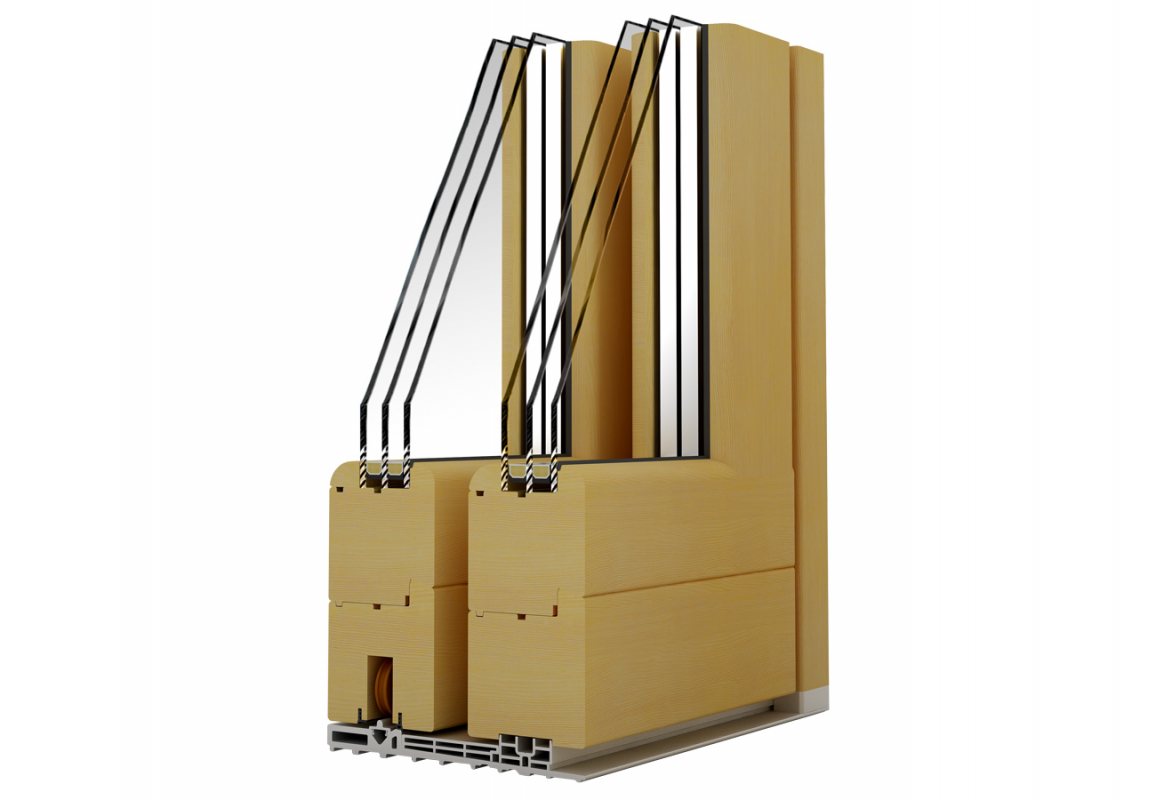

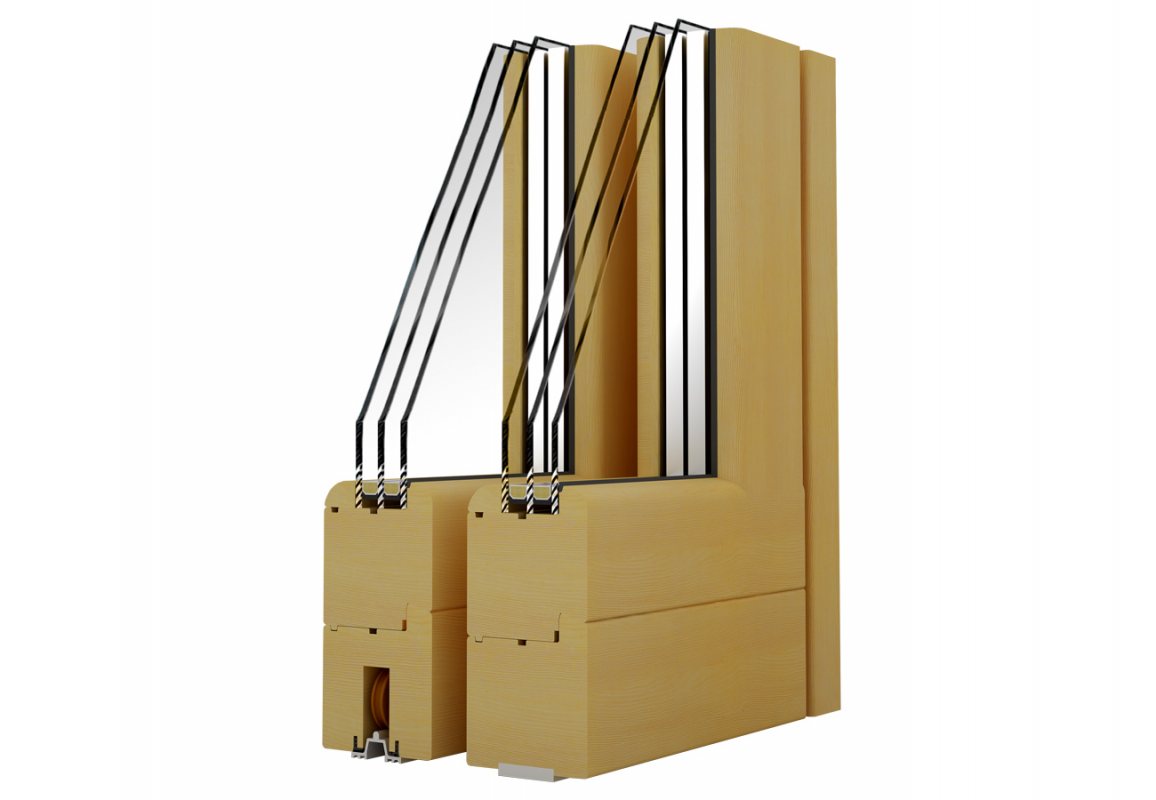

Closed external and internal seal profile , central on node with fin. Threshold to choose between track type “Base” and thermal “Climatech” fiberglass pultruse.

DOUBLE-GLAZING

Use of low-emission single-chamber double glazing with standard Argon gas, in accordance with the current regulations. Of variable thicknesses and types (solar control, safety, acoustic, satin…) according to requirements. Standard PVC spacer called “warm edge” suitable for improving the thermal transmittance of the window frame, reducing linear thermal transmittance along the perimeter junction between glass and window frame.

THERMAL TRANSMITTANCE*

Thermal insulation achievable up to UW value of 0.74 W/m2K.

*valori termici calcolati (secondo norma UNI EN ISO 10077-1 e 2) con trasmittanza termica legno abete su finestra 1 anta dimensioni 1230 x 1480mm (secondo norma UNI EN 14351-1), vetrocamera del tipo basso emissivo con valore Ug = 0,5 (W/m²K)

ACOUSTIC PROTECTION

Starting from 31 dB for windows based on glass noise reduction values up to 45 dB.

Further information about Lift and slide OVER 92 wooden window system
