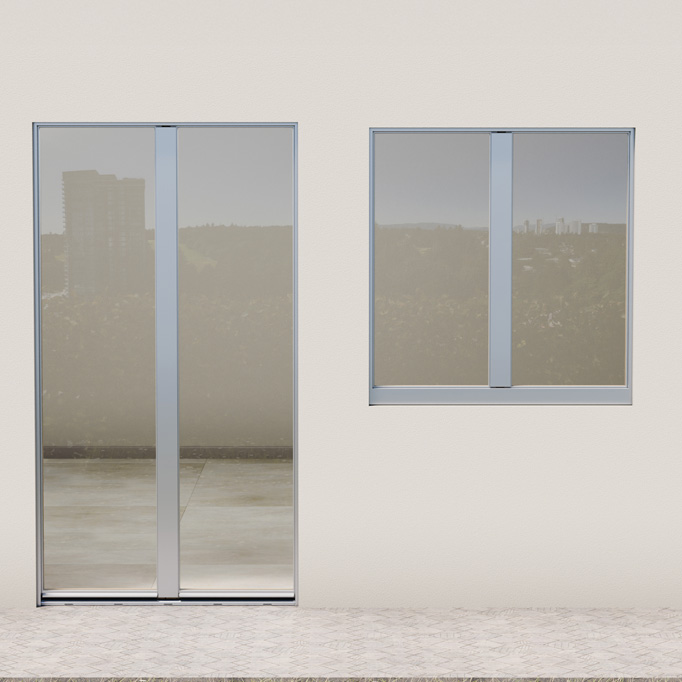

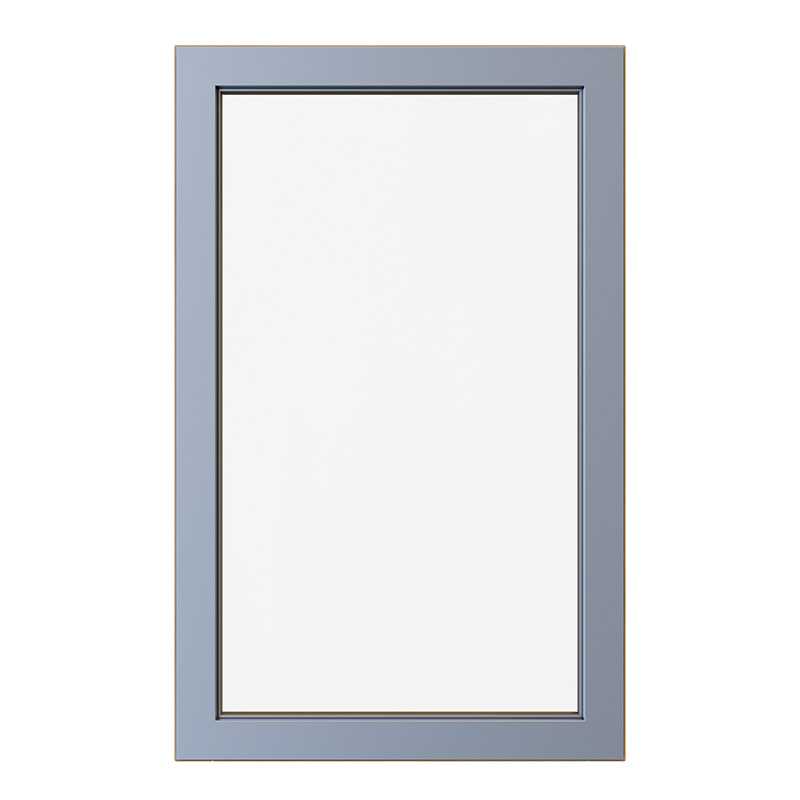

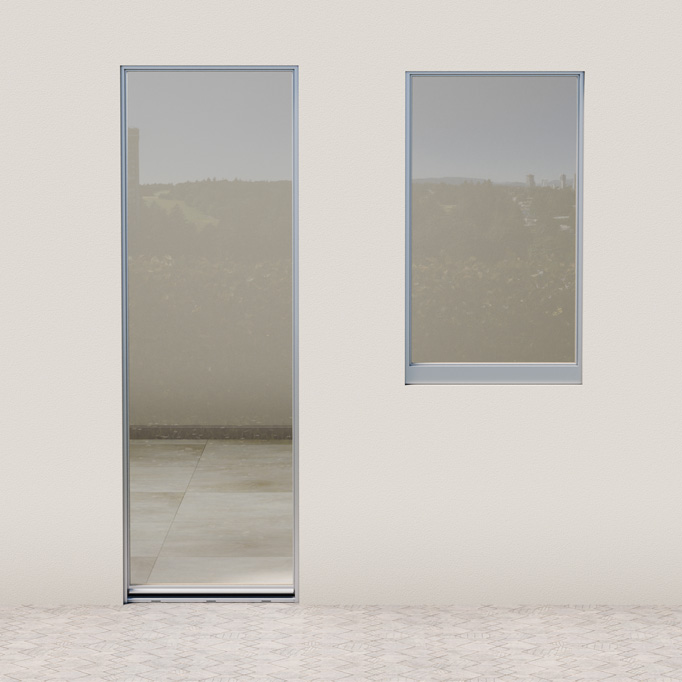

MINIMAL doors and windows system, with the possibility of ALL EXTERNAL SIDE GLASS. Triple sealing gasket, in laminated wood with 3 layers to choose from: pine, fir, oak, okoumè, larch or others on request external aluminium cladding on sash. Possibility to install on a counter frame or for restructuring.
Wood Surface treatment based on acrylic resins in aqueous emulsion; the applied cycle varies from three to six coats depending on the finish and the required durability.

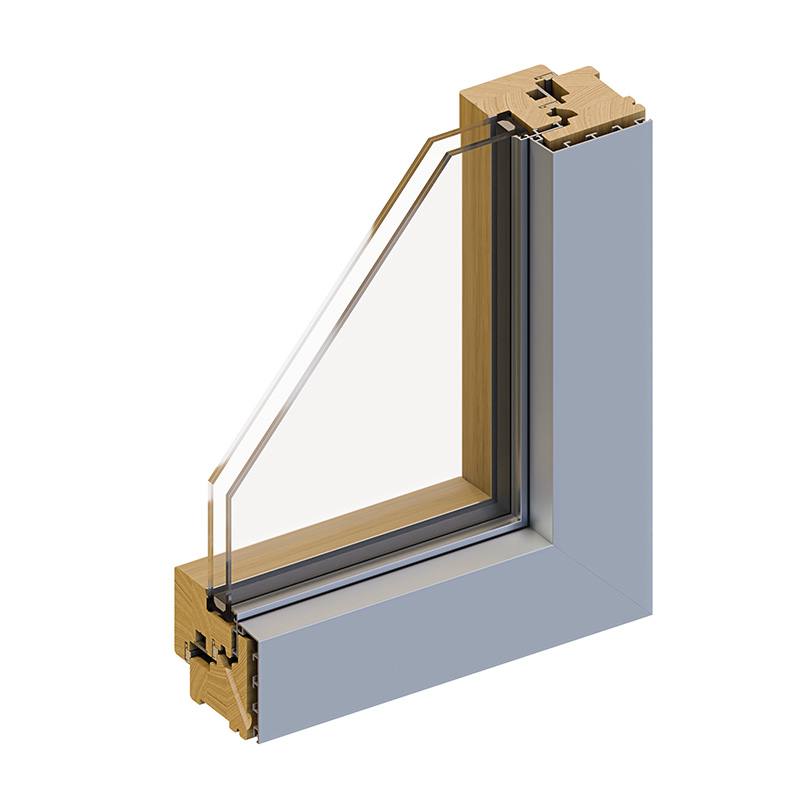

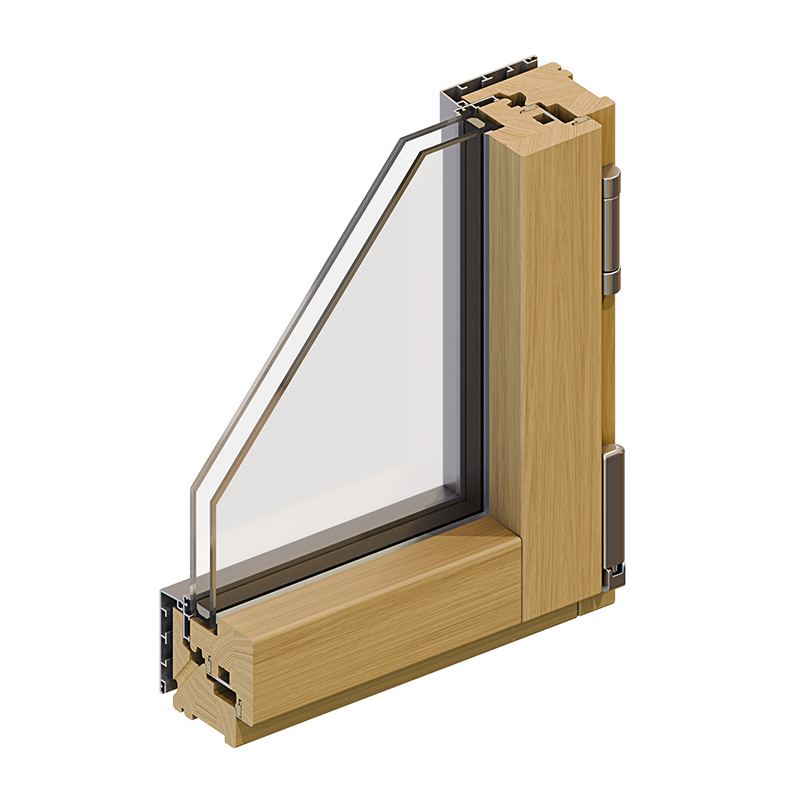

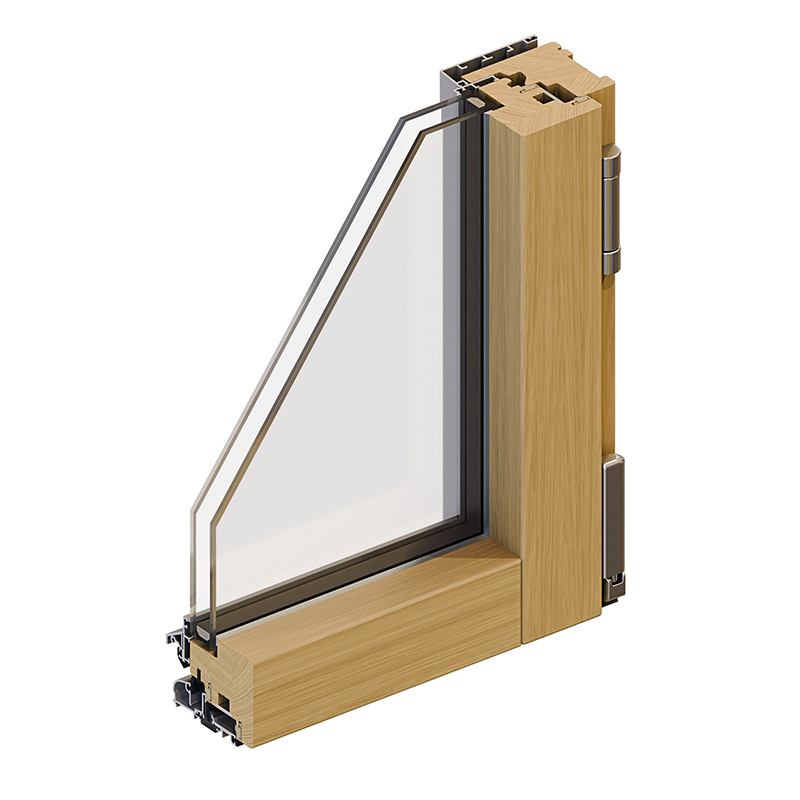

Fixed lamellar window frame nominal section 71.5 x 76 mm.
Lamellar sash nominal section 68 x 63 mm.

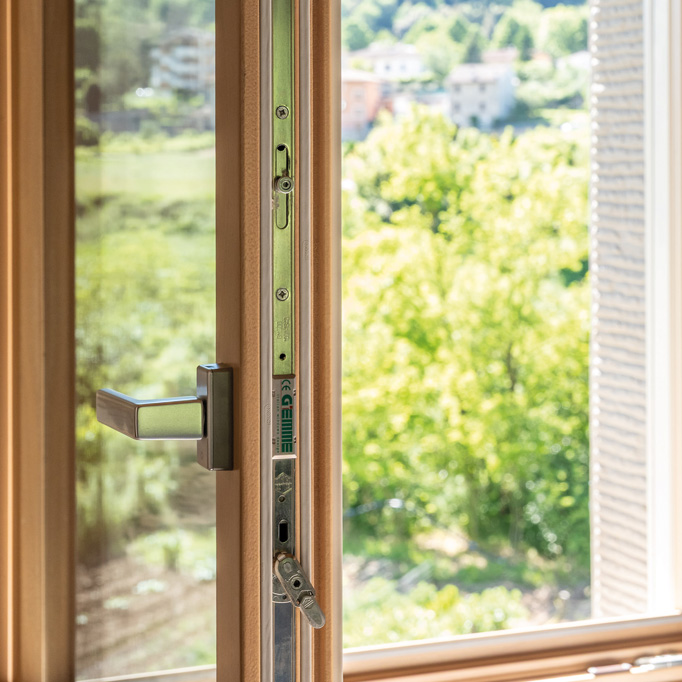

Maico Multi-Matic standard hardware with tilt and turn and lever rod. Complete with anti-burglary striker plates and pawls along the entire perimeter.
Triple abutment sealing profile with triple gasket. Square shaped integral glazing stopper.
Use of single-chamber double glazing or low-emission double-chamber triple glazing with standard Argon gas and Warm edge, in accordance with the current regulations. Of variable thicknesses and types (solar control, safety, acoustic, satin…) according to requirements.
Thermal insulation achievable up to UW value of 0.76 W/m2K.
*calculated thermal values (according to the standard UNI EN ISO 10077-1 and 2) with fir wood thermal transmittance on 1 sash dimensions 1230 x 1480mm (according to the standard UNI EN 14351-1), low-emission double glazing with value Ug = 0.5 (W/m²K)
Starting from 31 dB for windows based on glass noise reduction values up to 43 dB.
**possibility of inserting different glass in order to improve noise reduction

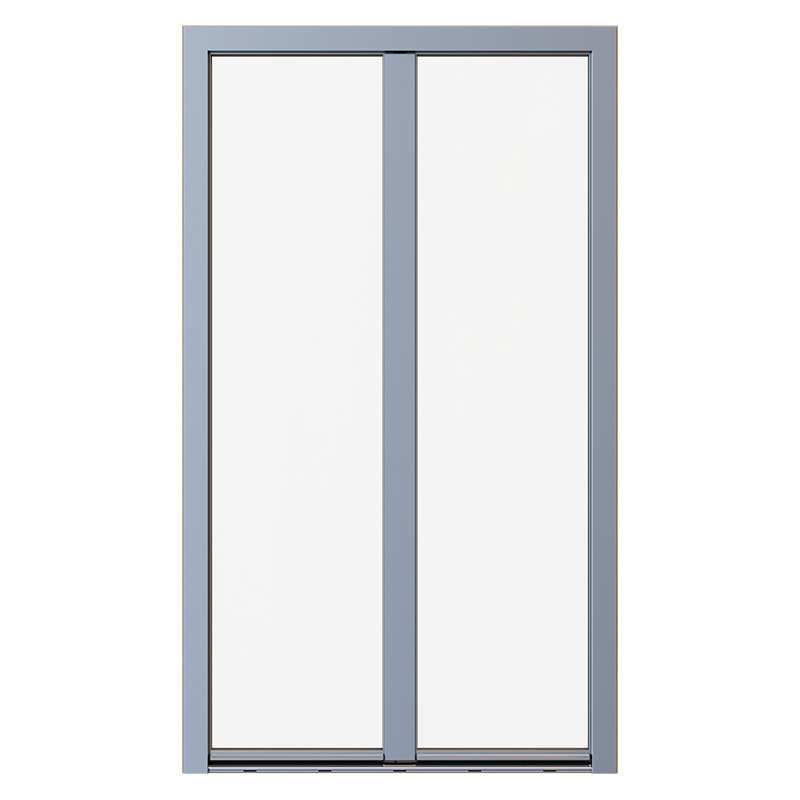

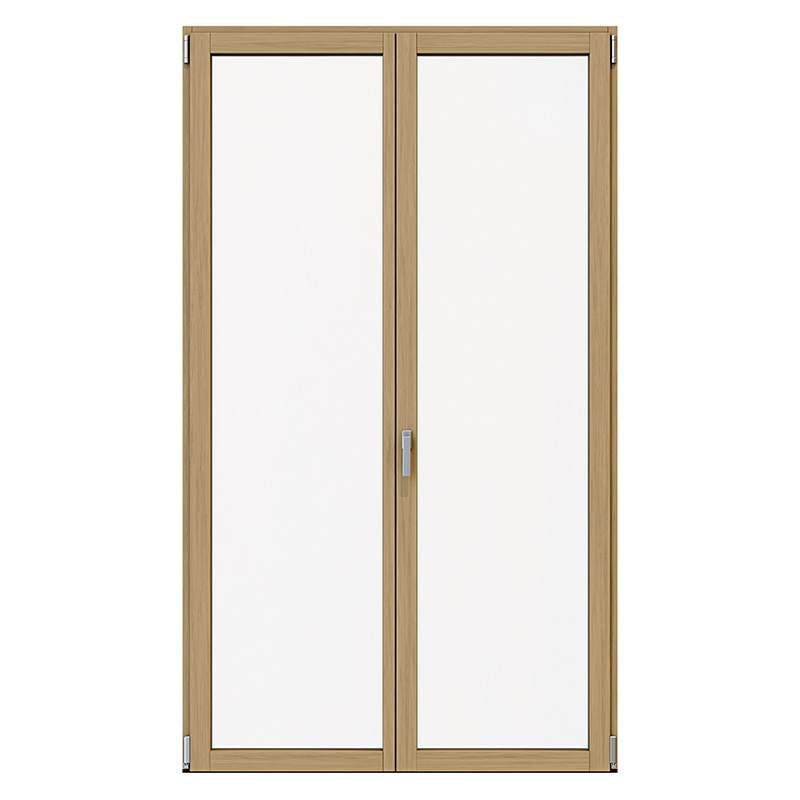

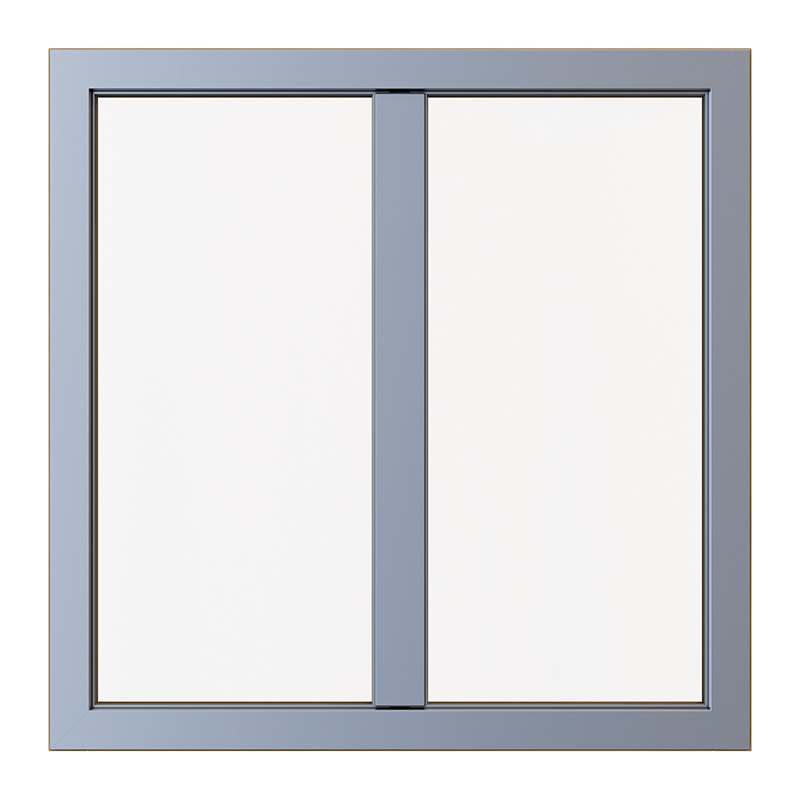

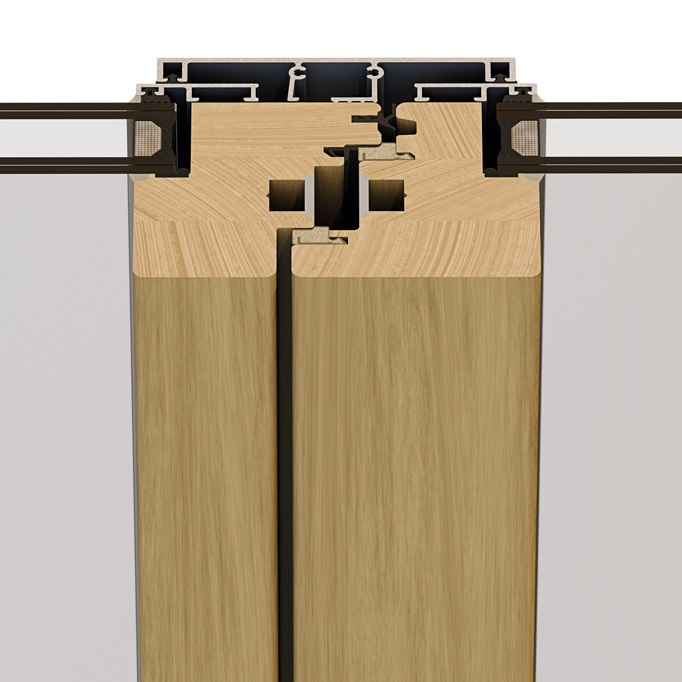

MINIMAL CENTRAL NODE.

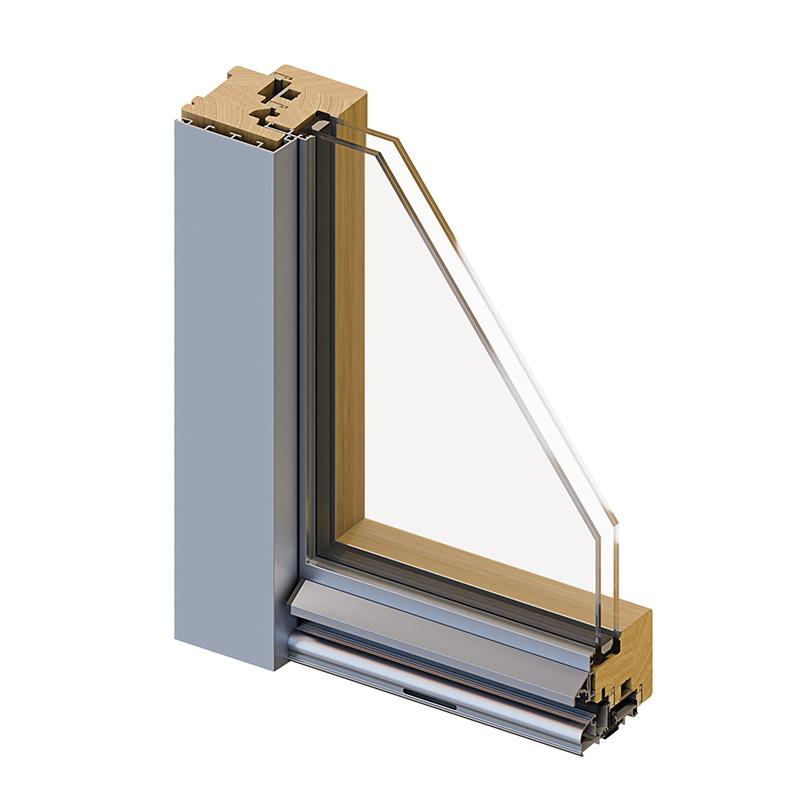

Only 10 cm. Compared to standard knots that can also reach 16cm. Aluminium casing for external profile (standard).

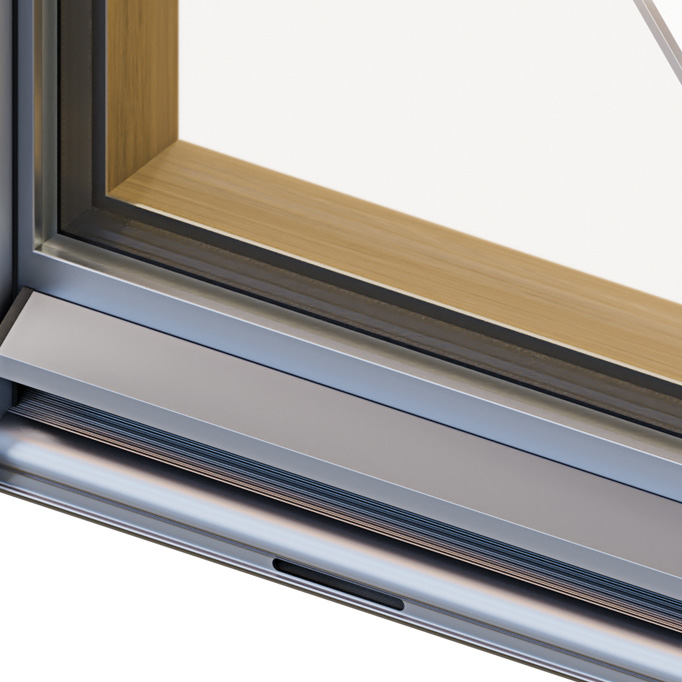

THRESHOLD IN ALUMINIUM.
Low aluminium threshold for French windows without overhangs on the floor. Very high resistance to air, rain and wind.
To enhance your knowledge about our range, Giemme provides product technical drawings, a tool to increase the opportunity for users and professionals to immediately check sizes and solutions adopted.
