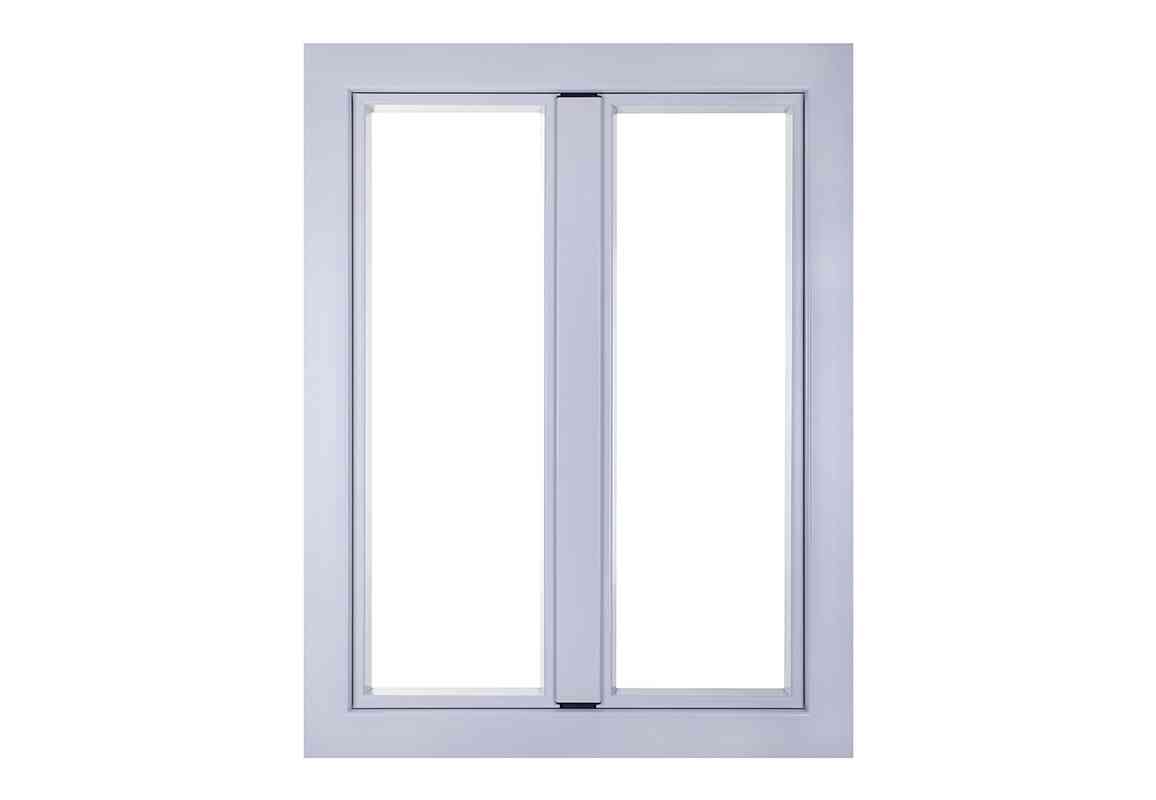

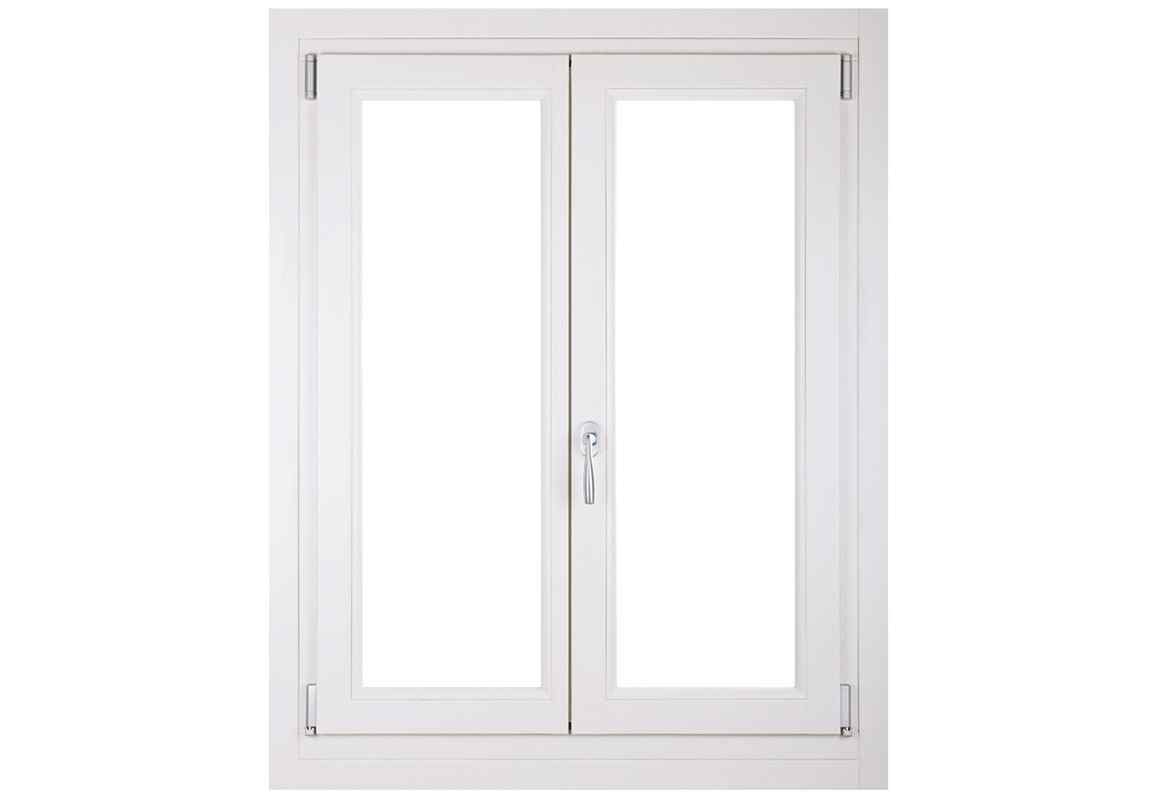

OVERLUX 68 INTEGRA / Wooden aluminium window

Back to Wooden aluminium window

overlux 68 integra

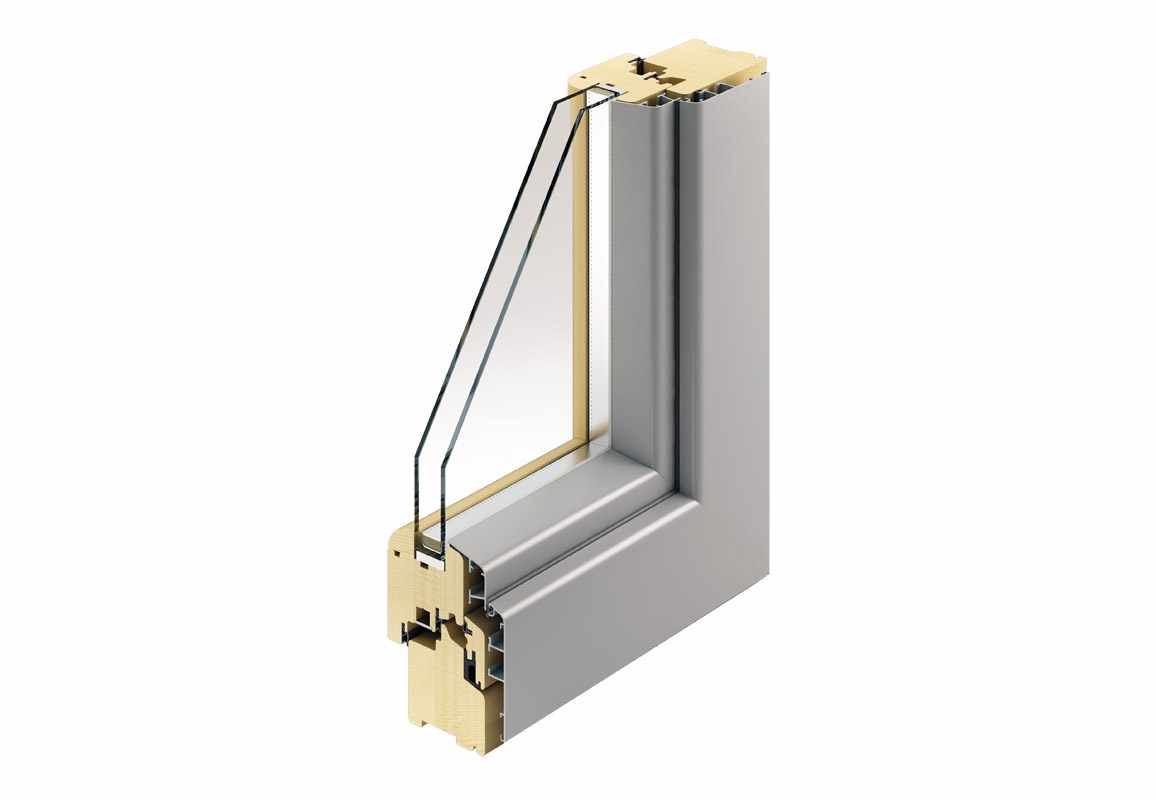

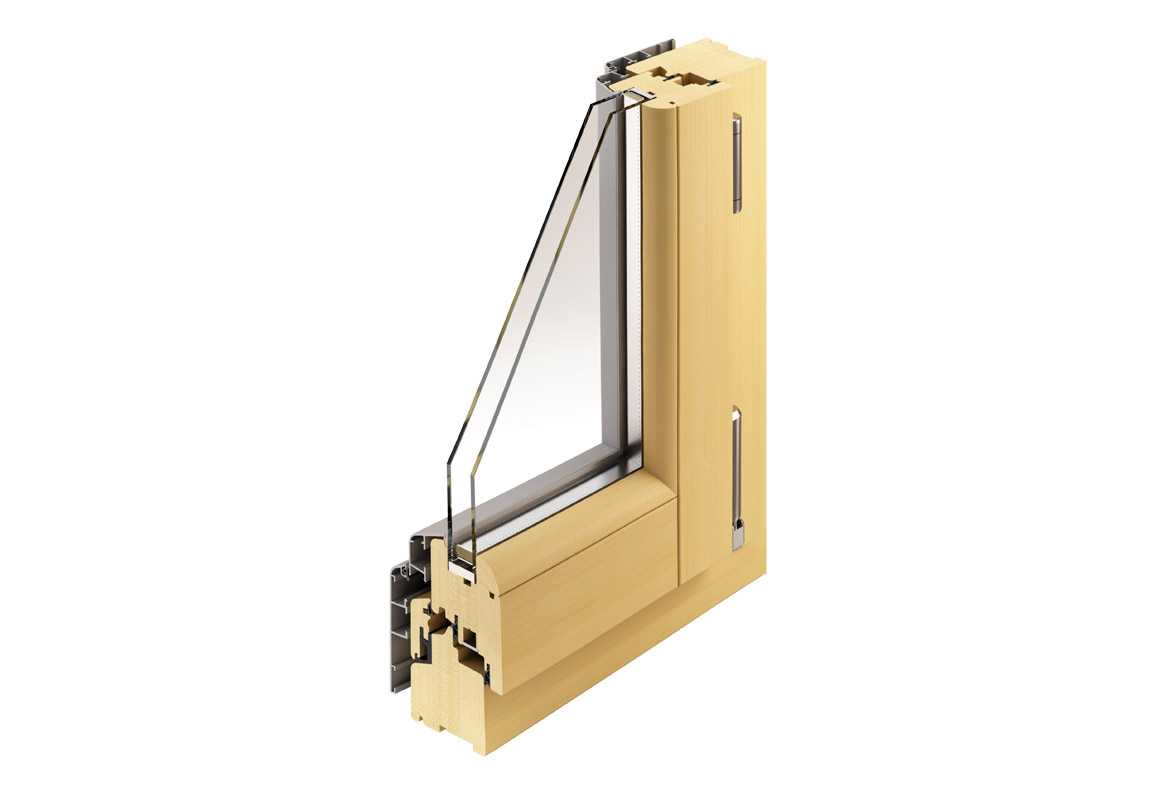

Doors and windows system with double gasket, in laminated wood 3 layers in a choice of: pine, fir, oak, okoumè, larch or others on request and external aluminium welded cladding.

WOODEN PROTECTION

Wood Surface treatment with products based on acrylic resins in aqueous emulsion; the applied cycle varies from three to six coats depending on the finish and the required durability.



DIMENSIONS

Fixed lamellar window frame nominal section 68 x 82 mm. Lamellar sash nominal section 68 x 79 mm.

HARDWARE

Maico Multi-Matic as standard hardware with tilt and turn and lever rod. Complete with anti-burglary striker plates and pawls along the entire perimeter.

GASKET AND SEAL

Triple abutment sealing profile with triple gasket. Shaped glazing stopper in different shapes to choose between rounded, square, bevelled and baroque.

DOUBLE-GLAZING

Use of low-emission single-chamber double glazing with standard Argon gas, in accordance with the current regulations. Of variable thicknesses and types (solar control, safety, acoustic, satin…) according to requirements. Standard PVC spacer called “warm edge” suitable for improving the thermal transmittance of the window frame, reducing linear thermal transmittance along the perimeter junction between glass and window frame.

THERMAL TRANSMITTANCE*

Thermal insulation achievable up to UW value of 1.23 W/m2K

*calculated thermal values (according to the standard UNI EN ISO 10077-1 and 2) with fir wood thermal transmittance on 1 sash dimensions 1230 x 1480mm (according to the standard UNI EN 14351-1), low-emission double glazing with value Ug = 1.1 (W/m²K)

ACOUSTIC PROTECTION

Starting from 31 dB for windows based on glass noise reduction values up to 45 dB.

Further information about OVERLUX 68 INTEGRA Wooden aluminium window

TABLES AND SECTIONS

DOCUMENT AND LINK

Project

Have a look at our Gallery of Wooden aluminium window realizations. Ideas and possibilities for your projects.
Let yourself be inspired.

Learn more

Technical drawings

To enhance your knowledge about our range, Giemme provides product technical drawings, a tool to increase the opportunity for users and professionals to immediately check sizes and solutions adopted.

Download PDF

Brochure

Please download Product information Brochure to increase your knowledge and discover even more features.
Enjoy.

Download PDF

Finishes

Possibility to choose in our wide variety of colours and essences. In addition to the standard colours, we also offer a wide selection of special colours.

Learn more

Opening solutions

We offer a variety of opening for each single Giemme window system. In addition to standard openings Giemme is always available to assess your needs.

Learn more
